DHCP Stands for Dynamic Host Configuration Protocol.
It is used to dynamically assign TCP / IP configuration parameters to the devices .
TCP/IP Parameters – IP address , Subnet mask , Default gateway , DNS IP address etc.
DHCP Client receives TCP / IP configuration parameters from DHCP Server.
DHCP PROCESS
The process by which DHCP Server lease TCP/IP Configuration to DHCP Client is
D - Discover
O - Offer
R - Request
A - Ack
DHCP PACKET FORMAT

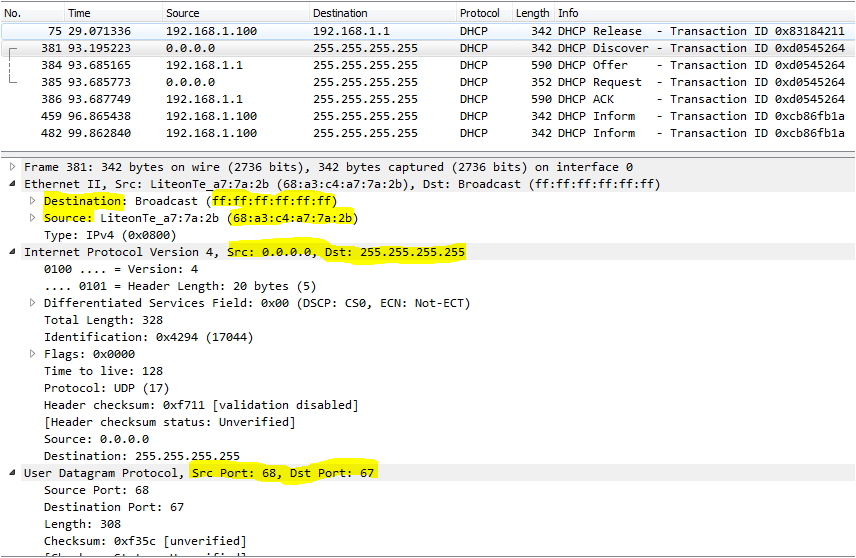

DISCOVER
CLIENT -> SERVER
It is a broadcast message.
By using this message client discover the DHCP Server.
Source IP – 0.0.0.0
Destination IP- 255.255.255.255
Source MAC :- MAC address of client interface
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 68
Destination UDP Port 67
OFFER
SERVER -> CLIENT
It is includes TCP/IP Configuration Parameters.
By using this message client discover the DHCP Server.
Source IP – DHCP SERVER IP
Destination IP- 255.255.255.255
Source MAC :- MAC address of DHCP Server.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 67
Destination UDP Port 68
REQUEST
CLIENT -> SERVER
Client accepts the offer and send Request broadcast message to request the TCP /IP Configuration offered by the Server.
Source IP – 0.0.0.0
Destination IP- 255.255.255.255
Source MAC :- MAC address of Client.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 68
Destination UDP Port 67
ACK
SERVER -> CLIENT
Server sents ACK to client and lease the TCP/IP Configuration parameters.
Source IP – DHCP Server IP
Destination IP- 255.255.255.255
Source MAC :- MAC address of Server.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 67
Destination UDP Port 68
It is used to dynamically assign TCP / IP configuration parameters to the devices .
TCP/IP Parameters – IP address , Subnet mask , Default gateway , DNS IP address etc.
DHCP Client receives TCP / IP configuration parameters from DHCP Server.
DHCP PROCESS
The process by which DHCP Server lease TCP/IP Configuration to DHCP Client is
" D O R A "
D - Discover
O - Offer
R - Request
A - Ack
DHCP PACKET FORMAT
CLIENT -> SERVER
It is a broadcast message.
By using this message client discover the DHCP Server.
Source IP – 0.0.0.0
Destination IP- 255.255.255.255
Source MAC :- MAC address of client interface
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 68
Destination UDP Port 67
OFFER
SERVER -> CLIENT
It is includes TCP/IP Configuration Parameters.
By using this message client discover the DHCP Server.
Source IP – DHCP SERVER IP
Destination IP- 255.255.255.255
Source MAC :- MAC address of DHCP Server.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 67
Destination UDP Port 68
REQUEST
CLIENT -> SERVER
Client accepts the offer and send Request broadcast message to request the TCP /IP Configuration offered by the Server.
Source IP – 0.0.0.0
Destination IP- 255.255.255.255
Source MAC :- MAC address of Client.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 68
Destination UDP Port 67
ACK
SERVER -> CLIENT
Server sents ACK to client and lease the TCP/IP Configuration parameters.
Source IP – DHCP Server IP
Destination IP- 255.255.255.255
Source MAC :- MAC address of Server.
Destination MAC :- ff:ff:ff:ff:ff:ff
Source UDP Port 67
Destination UDP Port 68
