BGP CHAPTER 8 -Reading BGP Table

Let's first check BGP status of all routers

R1#sh ip bgp summary
BGP router identifier 14.1.1.1, local AS number 100
BGP table version is 1, main routing table version 1

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
12.1.1.2 4 200 7 7 1 0 0 00:04:22 0
13.1.1.3 4 300 5 5 1 0 0 00:01:18 0
14.1.1.4 4 100 4 4 1 0 0 00:00:02 0

R2#sh ip bgp sum
BGP router identifier 23.1.1.2, local AS number 200
BGP table version is 1, main routing table version 1

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/Pfx
Rcd
12.1.1.1 4 100 9 9 1 0 0 00:06:29 0

23.1.1.3 4 300 7 8 1 0 0 00:04:43 0

R3#sh ip bgp summary
BGP router identifier 23.1.1.3, local AS number 300
BGP table version is 1, main routing table version 1

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
13.1.1.1 4 100 8 8 1 0 0 00:04:12 0
23.1.1.2 4 200 9 8 1 0 0 00:05:29 0

R4#sh ip bgp summary
BGP router identifier 14.1.1.4, local AS number 100
BGP table version is 1, main routing table version 1

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
14.1.1.1 4 100 7 7 1 0 0 00:03:48 0

BGP Router ID :-

a.k.a BGP Identifier is the highest loopback IP address configured on the router and in absence of the loopback interface BGP Router ID will be the highest IP address configured to an active physical interface.

Routes are indicated by various symbols -

" > " greater than sign means best route.
" * " valid router
" i " the route learned from same AS i.e. IBGP route.

We can also view multiple BGP attributes in the bgp table .
- Origin Code
- AS PATH
-Next Hop
-Weight
-Local Preference

Origin Code-

i - IGP - it means the network is advertise in BGP using "network" command.
? -Unknow - it means the network is redistributed into BGP from IGP or static.
e- EGP - it means the network is learned via EGP which is a legacy protocol so we never see it in output.

Status Code -

r - RIB failure
Routing Information Base Failure - It occurs when BGP knows about the network but it is not getting installed in its Routing table since there is some other Routing protocol with less AD.

d- Damped
Incase any network is flapping continuously then the status of the route will be damped.

s-Suppressed
BGP knows about the network but that network is part of summarization

S- stale
The route is stale and need to refreshed when bgp peer is re-established . it is used with
nonstop forwarding.

DIAGRAM 1 - BGP TABLE

DIAGRAM 2 - Redistributed Routes in BGP

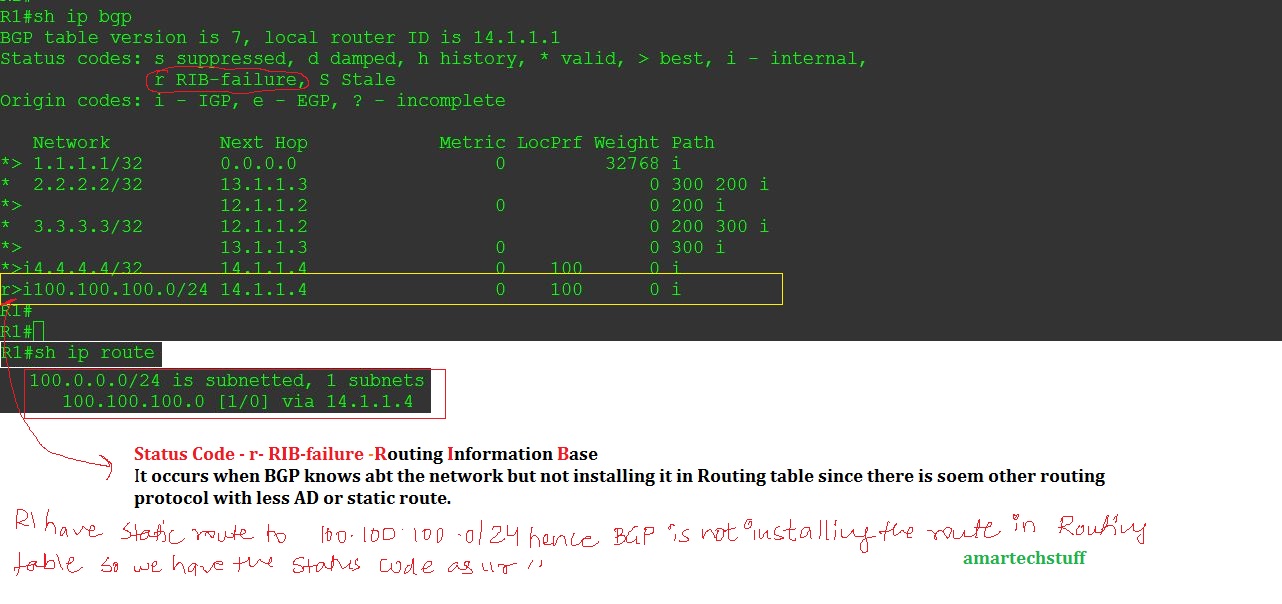

DIAGRAM 3 - RIB Failure

R1#sh run
Building configuration...

Current configuration : 1342 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
!
interface Loopback0
ip address 1.1.1.1 255.255.255.255
!
interface FastEthernet0
ip address 14.1.1.1 255.255.255.0
speed auto
!
interface Serial0
ip address 12.1.1.1 255.255.255.0
!
interface Serial1
no ip address
shutdown
!
interface Serial2
ip address 13.1.1.1 255.255.255.0
!
router eigrp 200
network 14.0.0.0
auto-summary
!
router bgp 100
no synchronization
bgp log-neighbor-changes
network 1.1.1.1 mask 255.255.255.255
redistribute eigrp 200
neighbor 12.1.1.2 remote-as 200
neighbor 13.1.1.3 remote-as 300
neighbor 14.1.1.4 remote-as 100
no auto-summary
!
ip forward-protocol nd
ip route 100.100.100.0 255.255.255.0 14.1.1.4
!
!
no ip http server
no ip http secure-server
!
no cdp log mismatch duplex
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
line vty 0 4
login
!
end

========================================================

R2#sh run

Building configuration...

Current configuration : 1178 bytes

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

hostname R2

boot-start-marker

boot-end-marker

no aaa new-model

memory-size iomem 5

no ip icmp rate-limit unreachable

ip cef

no ip domain lookup

ip auth-proxy max-nodata-conns 3

ip admission max-nodata-conns 3

ip tcp synwait-time 5

interface Loopback0

ip address 2.2.2.2 255.255.255.255

interface FastEthernet0

no ip address

shutdown

speed auto

interface Serial0

ip address 12.1.1.2 255.255.255.0

interface Serial1

ip address 23.1.1.2 255.255.255.0

interface Serial2

no ip address

shutdown

router bgp 200

no synchronization

bgp log-neighbor-changes

network 2.2.2.2 mask 255.255.255.255

neighbor 12.1.1.1 remote-as 100

neighbor 23.1.1.3 remote-as 300

no auto-summary

ip forward-protocol nd

no ip http server

no ip http secure-server

no cdp log mismatch duplex

control-plane

line con 0

exec-timeout 0 0

privilege level 15

logging synchronous

line aux 0

exec-timeout 0 0

privilege level 15

logging synchronous

line vty 0 4

end

=============================================================

R3#sh run

Building configuration...

Current configuration : 972 bytes

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

hostname R3

boot-start-marker

boot-end-marker

no aaa new-model

memory-size iomem 5

ip cef

ip auth-proxy max-nodata-conns 3

ip admission max-nodata-conns 3

interface Loopback0

ip address 3.3.3.3 255.255.255.255

interface FastEthernet0

no ip address

shutdown

speed auto

interface Serial0

no ip address

shutdown

no fair-queue

interface Serial1

ip address 23.1.1.3 255.255.255.0

interface Serial2

ip address 13.1.1.3 255.255.255.0

router bgp 300

no synchronization

bgp log-neighbor-changes

network 3.3.3.3 mask 255.255.255.255

neighbor 13.1.1.1 remote-as 100

neighbor 23.1.1.2 remote-as 200

no auto-summary

ip forward-protocol nd

no ip http server

no ip http secure-server

control-plane

line con 0

line aux 0

line vty 0 4

end

=========================================================

R4#sh run

Building configuration...

Current configuration : 1365 bytes

version 12.4

service timestamps debug datetime msec

service timestamps log datetime msec

no service password-encryption

hostname R4

boot-start-marker

boot-end-marker

no aaa new-model

memory-size iomem 5

no ip icmp rate-limit unreachable

ip cef

no ip domain lookup

ip auth-proxy max-nodata-conns 3

ip admission max-nodata-conns 3

ip tcp synwait-time 5

interface Loopback0

ip address 4.4.4.4 255.255.255.255

interface Loopback1

ip address 100.100.100.1 255.255.255.0

interface Loopback200

ip address 200.0.0.1 255.0.0.0

interface FastEthernet0

ip address 14.1.1.4 255.255.255.0

speed auto

interface Serial0

no ip address

shutdown

interface Serial1

no ip address

shutdown

interface Serial2

no ip address

shutdown

router eigrp 200

network 14.0.0.0

network 200.0.0.0

auto-summary

router bgp 100

no synchronization

bgp log-neighbor-changes

network 4.4.4.4 mask 255.255.255.255

network 100.100.100.0 mask 255.255.255.0

neighbor 14.1.1.1 remote-as 100

no auto-summary

ip forward-protocol nd

no ip http server

no ip http secure-server

no cdp log mismatch duplex

control-plane

line con 0

exec-timeout 0 0

privilege level 15

logging synchronous

line aux 0

exec-timeout 0 0

privilege level 15

logging synchronous

line vty 0 4

end
